Configure Sigma to use Google OAuth for user authentication, providing a seamless login experience through existing Google accounts. Prerequisites:

​
Guide

1

Create Google Cloud Project

Navigate to the Google Cloud Console Project Creation page and fill in the required fields.
2

Enable Google People API

Navigate to APIs & Services and find Google People API.Ensure your newly created project is selected in the top bar and click Enable.
3

Create Google Auth Platform

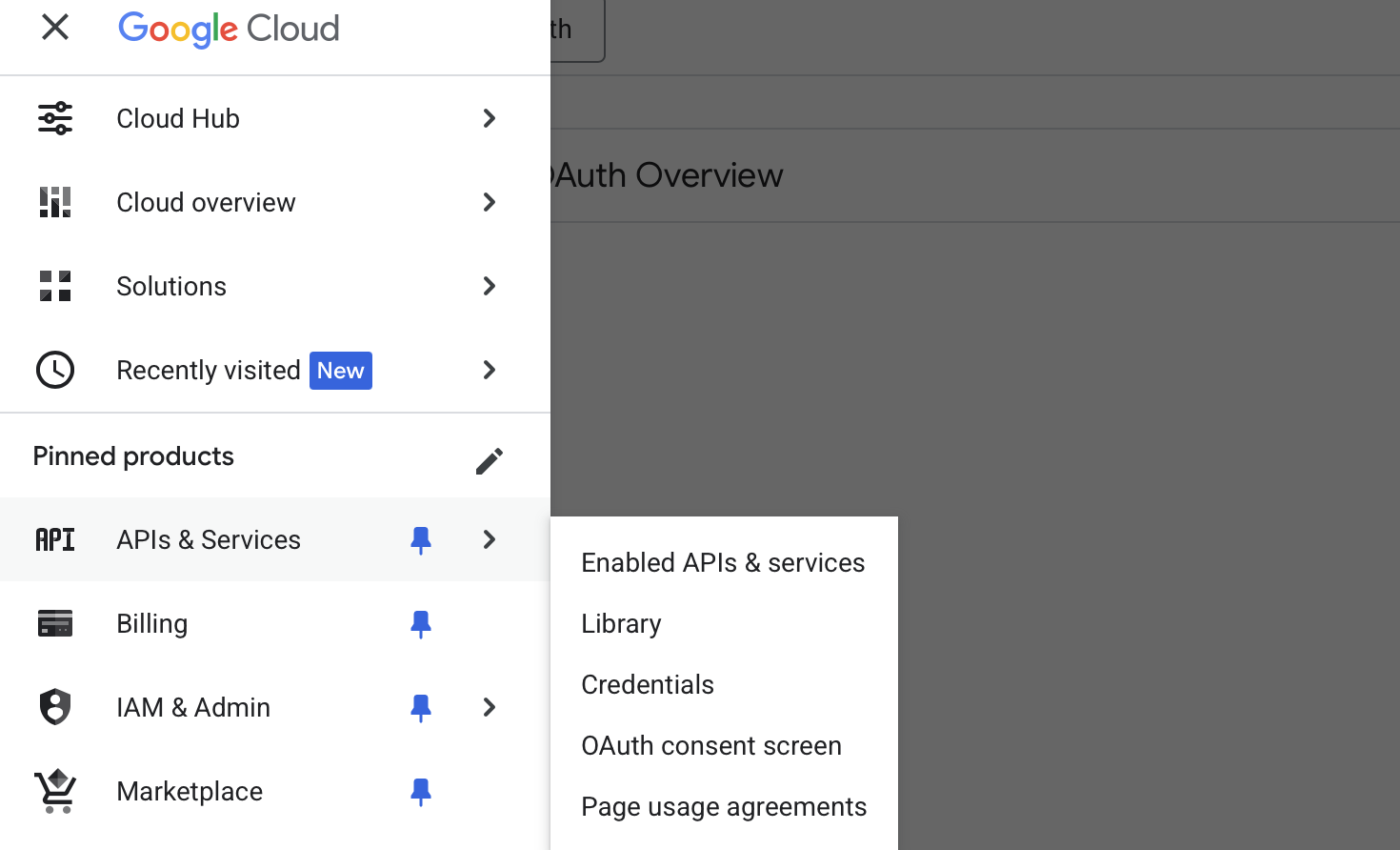

Open the left sidebar and navigate to APIs & Services → OAuth Consent Screen.Once on the Overview page, click Get Started.Google Cloud Console OAuth Consent Screen Page
4

Configure OAuth Project & Consent Screen

Fill in the App name and User support email fields.Select your Audience. If you have a Google Workspace organization, select Internal. If not, select External.
If you select External, you will need to add your users manually in the Audience tab under Test users.
Fill in any other required fields and finalize the configuration.
5

Create OAuth Client

Navigate to APIs & Services → OAuth Consent Screen → Clients page.Click ”+ Create Client” and select Web Application.
6

Configure OAuth Client

Name: SigmaAuthorized JavaScript origins and Authorized redirect URIs depend on your deployment environment.If hosting Sigma locally use:
https://xx.xxx.xxx
https://xx.xxx.xxx/auth/oauth/callback
If hosting Sigma on a custom domain use:
https://YOUR_Sigma_DOMAIN.com
https://YOUR_Sigma_DOMAIN.com/auth/oauth/callback
Make sure the URIs you enter here match the URI you use to access Sigma!
7

Save OAuth Credentials

Click Create → Download JSON to save the OAuth client credentials. Alternatively, save the Client ID and Client Secret to a password or secrets manager.
8

Configure Sigma

Configure Sigma with the following environment variables in your .env or values.yaml file (Docker and Kubernetes, respectively).
.env
AUTH_TYPE=google_oauth
OAUTH_CLIENT_ID=YOUR_CLIENT_ID
OAUTH_CLIENT_SECRET=YOUR_CLIENT_SECRET

# If you are deploying to a custom domain, you will need to set the `WEB_DOMAIN` environment variable.
WEB_DOMAIN=https://YOUR_Sigma_DOMAIN.com
values.yaml
auth:
  secrets:
    OAUTH_CLIENT_ID: <CLIENT_ID_FROM_GOOGLE>
    OAUTH_CLIENT_SECRET:<CLIENT_SECRET_FROM_GOOGLE>
configMap:
  AUTH_TYPE: google_oauth
